Every year, thousands of families face house fires that spread quickly, leaving very little time to react or protect loved ones inside safely.
As of July 2025, more than 9.3 million fire incidents were reported to NFIRS by 17,090 U.S. fire departments, showing how common and dangerous these situations can be.
A residential fire sprinkler system works quietly in the background, releasing water early to control flames before smoke and heat take over living spaces.
Modern homes burn faster because of lightweight, synthetic materials, making a fast response critical when escape time can drop to only minutes.
I will be telling you how home fire sprinklers work, why they save lives, and what makes them a smart safety choice for families.
But before getting into details, let us start by understanding why these fire sprinkler systems are becoming part of homes today.
What Are Residential Fire Sprinkler Systems?
Fire sprinkler systems are built-in fire safety systems installed in homes, primarily to help people escape faster during a fire.
Instead of waiting for someone to react, the system is always ready, which really matters when fires spread fast indoors.
A typical system connects to a home’s water supply and uses pipes, control valves, and heat-sensitive sprinkler heads placed in ceilings or walls.
These home systems follow standards like NFPA 13D for 1-family houses and NFPA 13R for low-rise multi-family buildings, which keep designs simpler and more home-friendly.
Unlike smoke alarms that only warn you, sprinkler systems actively control fire conditions without needing anyone to grab tools or make quick decisions.
Modern sprinkler heads can be low-profile or concealed, so they do not mess up the look of your rooms.
Types of Residential Fire Sprinkler Systems
Homes use different sprinkler system types based on climate, layout, and water conditions, so picking the right one helps the system respond correctly during a fire.
1. Wet Pipe Residential Fire Sprinkler System
A wet pipe system keeps water inside the pipes at all times, so it reacts fast when heat triggers a sprinkler head.
This setup works best in areas where freezing temperatures are rare, since cold weather can damage water-filled pipes.
Because of its simple design, it costs less to install and needs less maintenance over time.
Many new homes choose this option because it connects easily to the main water supply and activates without delays.
2. Dry Pipe Residential Fire Sprinkler System
Dry pipe systems store pressurized air in the pipes rather than water, helping prevent freezing in colder areas.
When a sprinkler head is activated by heat, the air releases first, allowing water to flow in and control the fire. This small delay is expected and usually does not reduce safety in residential settings.
These systems are common in garages, attics, or homes located in colder regions where pipe freezing is a real concern.
3. Pre-Action Residential Fire Sprinkler System
Pre-action systems add an extra safety step before water enters the pipes, which helps reduce accidental water release.
These systems need a fire signal, such as heat detection, before water is allowed to move through the piping.
Homeowners often use this setup in rooms with electronics, home offices, or storage areas where water damage is a concern.
While more complex, they offer extra control and added peace of mind.
4. Antifreeze Residential Fire Sprinkler System
Antifreeze sprinkler systems are designed for areas where freezing temperatures can damage water-filled pipes, especially in unheated rooms or outer wall sections.
These systems use an approved antifreeze solution mixed with water, keeping sprinklers functional even when indoor heating is inconsistent.
Updated safety rules ensure modern antifreeze systems remain stable during fire exposure, making them a practical choice for cold-weather homes.

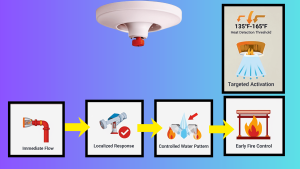

How Do Residential Fire Sprinkler Systems Work?
These systems operate on heat detection, not smoke, so they respond only when a real fire develops inside a home.
Each sprinkler head remains inactive until nearby heat reaches a specific temperature, usually between 135°F and 165°F, preventing false triggers from cooking or steam.
Once heat builds up near the ceiling, the sprinkler head closest to the fire activates and releases water directly onto the burning area.
- Only the nearest sprinkler head opens, not the entire system.
- Water sprays in a controlled pattern over the fire zone.
- Flow starts immediately through the home’s water supply.
- Fire growth slows before it spreads to other rooms.
This targeted response helps control flames early while using far less water than fire hoses.
Because modern homes burn faster due to synthetic materials, this early reaction creates critical escape time for people inside the house.
Benefits of Installing a Residential Fire Sprinkler System
Installing a home fire sprinkler system adds a strong safety layer that reacts faster than people can, especially when fires grow quickly indoors.
- Faster fire control: Sprinklers release water early at the fire source, helping slow flames before they spread across rooms.
- Improved life safety: Early fire control gives people more time to escape, especially during night fires when reaction time is limited.
- Reduced property damage: Targeted water release limits fire growth and prevents widespread damage compared to uncontrolled fires.
- Lower insurance costs: Many insurers offer discounts for sprinkler-protected homes, which helps balance installation costs over time.
- Automatic operation: The system works without human action, protecting children, older adults, and sleeping occupants reliably.
- Less water usage: Sprinklers use significantly less water than firefighting hoses, reducing cleanup time and long-term home damage.

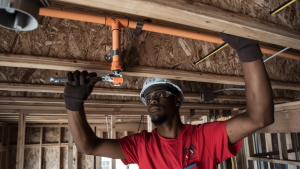

How Residential Fire Sprinkler Systems Are Installed?
Installing fire sprinkler systems is much easier when done during new home construction, since pipes are added before walls and ceilings are closed.
Builders can route piping alongside plumbing lines, install sprinkler heads cleanly, and connect everything to the main water supply with minimal disruption.
For older homes, installation takes more planning and careful work to avoid unnecessary damage.
Professionals inspect the layout, check water pressure, and design pipe routes through ceilings or walls before any cutting begins.
Small access points are created, pipes are installed, and sprinkler heads are installed in key rooms, such as bedrooms and living areas.
After installation, the system is tested to confirm proper water flow and head placement before surfaces are patched and restored.
While retrofitting takes more time and labor, experienced installers keep the process controlled and predictable.
Cost of Residential Fire Sprinkler Systems
The cost of a commercial fire sprinkler system usually falls within a predictable range for most homes, especially when planned early.
For new homes under construction, installation is generally more affordable because sprinkler piping is added before walls and ceilings are finished.
In many cases, new construction systems cost around $1.35 to $3.00per square foot, placing average homes between $3,500 and $7,500 overall, like 1% of total house building cost.
Existing homes typically cost more because installers must work around finished surfaces while carefully routing pipes and restoring areas afterward.
Retrofit installations often range from $2.00 to $7.00 per square foot, depending on the level of access and work involved.
While these numbers give a clear pricing window, understanding what shapes these costs helps homeowners make smarter installation decisions next.

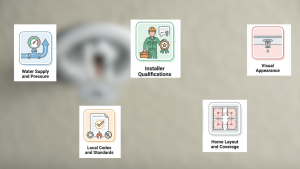

Key Things to Consider While Installing Fire Sprinkler Systems
Before installing a residential fire sprinkler system, a few practical points need attention to avoid issues later and keep everything running smoothly.
- Water supply and pressure: The home must have enough water flow, and weak pressure may require a pump or storage tank for proper sprinkler operation.
- Local codes and standards: Installation must comply with rules such as NFPA 13D or NFPA 13R, which specify coverage areas and system design limits.
- Installer qualifications: Licensed and experienced professionals ensure correct pipe sizing, sprinkler placement, and reliable long-term system performance.
- Home layout and coverage: Larger homes, garages, and attics may require additional planning to ensure all risk areas are properly protected.
- Visual appearance: Concealed or low-profile sprinkler heads can be selected early to keep ceilings neat without obvious hardware showing.
Common Residential Fire Sprinkler System Myths
Many homeowners avoid residential fire sprinkler systems because of common misunderstandings that spread through movies, social media, and word-of-mouth stories.
| Myth | Actual Fact |
|---|---|
| All sprinklers turn on at once | Only the sprinkler head closest to the fire activates, helping control the flames without soaking the entire house. |
| Sprinklers cause more damage than fire | Sprinklers use far less water than fire hoses and often reduce overall damage by stopping fires early. |
| Sprinklers go off due to smoke or cooking | Residential sprinklers respond to heat only, not smoke, steam, or burnt food in kitchens. |
| These systems are only for large buildings | Residential systems are designed specifically for homes and follow separate safety standards. |
| Sprinklers activate easily by accident | Accidental activation is extremely rare when systems are installed and maintained correctly. |
Conclusion
Residential fire sprinkler systems offer lasting protection that works even when no one is awake, alert, or nearby to respond quickly.
These systems help slow fire spread early, protect lives, and reduce damage, which makes homes safer in today’s fast-burning conditions.
I believe planning fire safety ahead of time gives you confidence that your family and space are protected every single day.
You also gain long-term value through safer living, possible insurance savings, and better preparedness for unexpected emergencies.
If home safety matters to you, take a moment to reflect on how well prepared your space is today.
Have you considered installing a fire sprinkler system in your home? Tell us, share with us in the comments below.
